Ampisu

The only full-featured lab power supply small enough to fit in your pocket

Get Notified at Launch

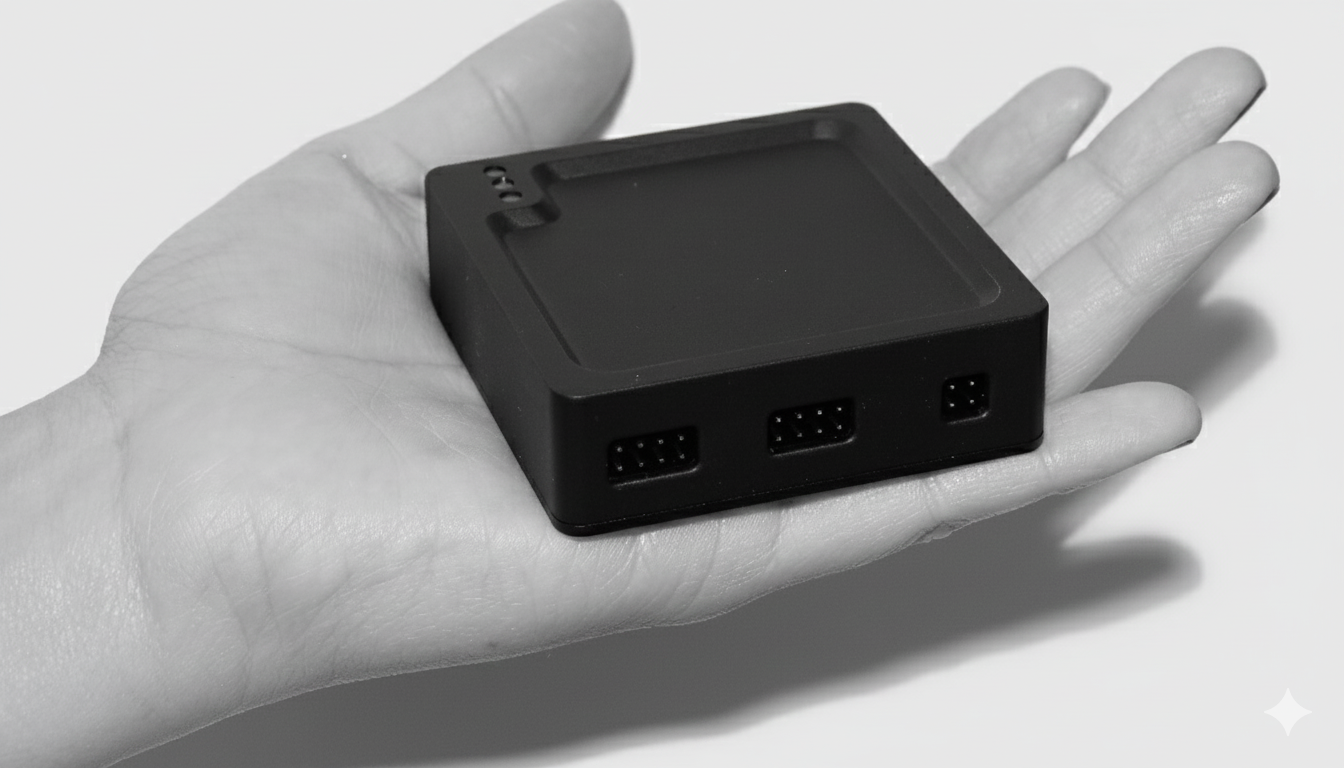

Ampisu in hand showing scale

Ampisu is the only full-featured lab power supply small enough to fit in your pocket, without compromising on precision, safety, or flexibility. Designed for engineers, makers, and educators, Ampisu replaces bulky bench supplies when space, mobility, or integration matter.

Features & Specifications

Connectivity Standard 2.54 mm pin-header outputs
Build Quality CNC-machined aluminum enclosure with status LEDs
Power & Communication USB for power and communication
Cross-Platform Works on Windows, Linux, and macOS without driver installation
Programmable SCPI commands, Python API, or web interface
Compact 62 × 62 × 19 mm (2.44 × 2.44 × 0.75 in)
Lightweight 110 g (3.9 oz)

Power Output

  • Three fully isolated outputs
  • Two programmable: 0–7.5 V, up to 500 mA each
  • One auxiliary: 3.3 V, up to 100 mA
  • Parallel mode: up to 1 A
  • Series mode: up to 15 V or ±7.5 V

Power Input

  • Powered from any standard USB Type-A or USB Type-C port
  • Automatically adapts output power to host's capabilities
  • Full performance on most modern USB Type-C ports

Performance & Protection

  • Precise voltage and current measurement
  • Fast, fine-grained analog current limiting
  • Low-noise outputs via linear post-regulation
  • Full galvanic isolation between USB host and outputs

Open Source

FULLY OPEN SOURCE

Ampisu is open source by design. Transparency, hackability, and long-term maintainability are core goals of the project.

After a successful crowdfunding campaign, we will release hardware schematics, the firmware source code, Python library, and web interface source code to the public. By doing so, system behavior is fully transparent and understandable, and the device can be inspected, maintained, and extended at the software and firmware level over time. All published files will be released under permissive open-source licenses suitable for hardware and software reuse.

The complete project repository will be made available before products ship to Crowd Supply for fulfillment, ensuring full transparency well ahead of delivery.

3
Isolated Outputs
15V
Max Series
110g
Total Weight
